Solids Builder - Vector Perpendicular

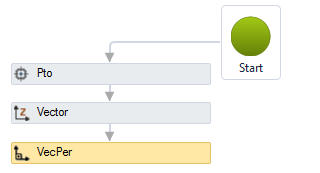

Perpendicular Vector - creates a vector that is perpendicular to another vector:

Perpendicular vectors are commonly used in coordinate system transformations ( Align), as they change something normally drawn in the XY plane to another undeformed coordinate system (move and rotate, no Design).

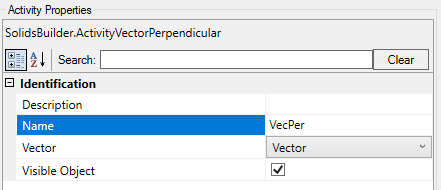

The Perpendicular Vector activity has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Vector - name of the vector source
  • Object Visible - indicates whether or not the point should be drawn in the preview

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of vectors

Methods (for use in VB expressions)

implements the methods of vectors
