Solids Builder - Cross Product Vector

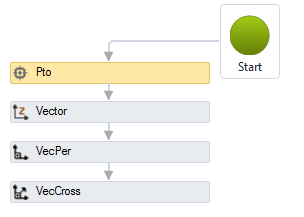

Vector Cross Product - creates a vector that is the product of two vectors:

Product vectors (A x B) are normally used in coordinate system transformations ( Align), as they change something normally drawn in the XY plane to another undeformed coordinate system (move and rotate, no Design).

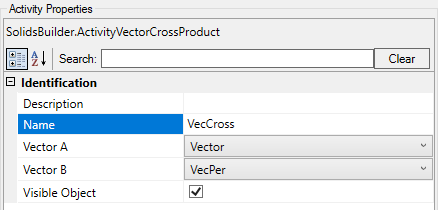

The Cross Product Vector activity has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Vector A - name of the vector A
  • Vector B - name of the vector B
  • Object Visible - indicates whether or not the point should be drawn in the preview

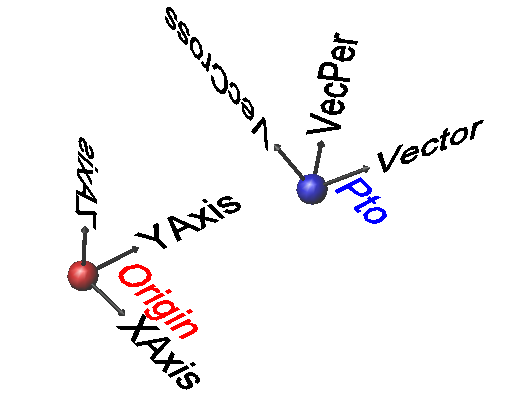

Note that the Z axis vector is the cross product of the X and Y

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of vectors

Methods (for use in VB expressions)

implements the methods of vectors
