Solids Builder - Cut Lines

Slice Lines - cut polylines, line, arcs at a predetermined point, parameter or distances:

Note, the point where the cut occurs has to be on the curve, otherwise an error will occur interrupting the execution of the model

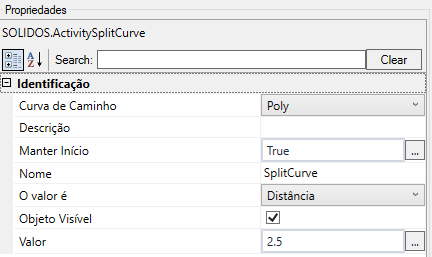

The Slice Lines activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Path Curve - name of the curve to be Slice
  • Keep Start - Indicates whether it is the beginning of the curve that should be kept
    • True - keeps the beginning of the curve
    • False - keeps the end of the curve
  • Object Visible - indicates whether or not the geometry should be drawn in the preview
  • Value is - indicates what kind of value is provided to calculate the point, it can be:
    • Distance - 3D distance over the line, starting from the beginning of the line. In the example above, I used a VB expression:
      Line.Length / 2

    • 2D Distance - It works similarly to the Distance option, except that the distance is taken into account when projecting the curve in the XY plane
    • Parameter - is a number, whose integer part refers to the vertex number and the fractional part refers to the percentage of the segment following this vertex
      in a polyline, the parameter 1.55 would be in the second segment (the first segment has ZERO index), counting 55% of its length:

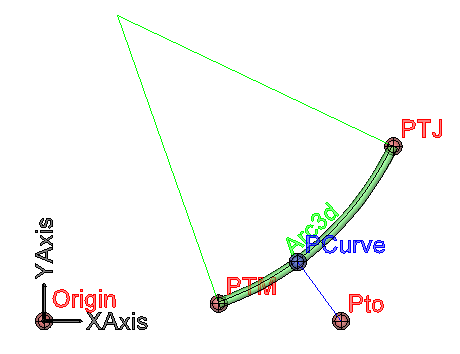

    • Point - another point, not necessarily on the curve
      The closest point to the curve will be calculated.

  • Value - a VB expression that provides value to calculate the point on the curve

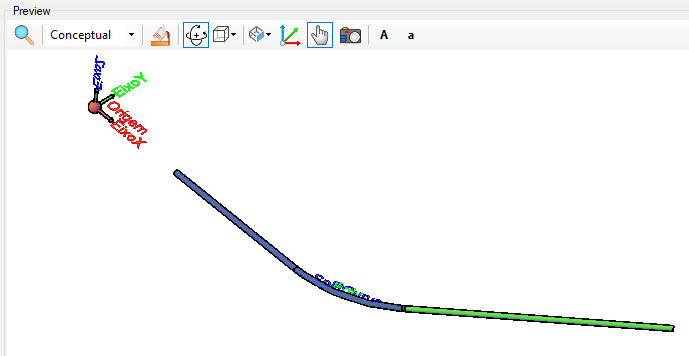

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of the curves

Methods (for use in VB expressions)

implements the methods of the curves
