Solids Builder - Set Parameter

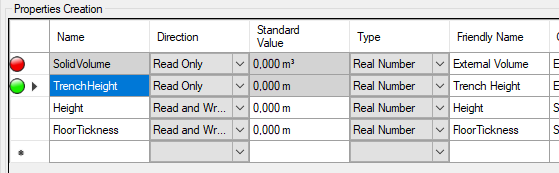

Set Parameter - sets a value to a Device Properties:

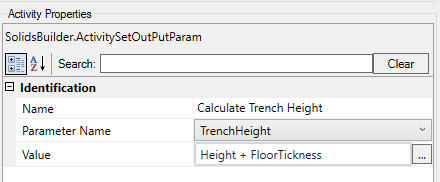

The Set Parameter activity has the following properties:

• Name - name of the activity
  Note that the name here does not need to follow the naming rules
• Parameter Name - chosen from the list of parameters:


• Value - any value, Visual Basic expression that is evaluated for the informed type, examples:
  • Double: 0.5 (the decimal separator is the dot (.))
  • Int32: 54
  • String: "TEXT"
  • VB Expressions:
    • Width + Wall
      Assuming they are two variables or parameters
    • Height * Length * Width
      In the example, the expression calculates the external volume of the body of a box
    • Line.StartPoint
      assuming that Line is an GeometryCurve
    • Math.Cos(Angle)
      Assuming that Angle is a variable that contains an angle given in radians
    • True
      Assuming the type is a Boolean
    • A*X^2+B*X*C
      Equations must be well written! (the above equation is different from: A*x² + B*x + C)
