Solids Builder - Subtract Regions

Subtract Regions - Subtracts the selected regions from a region:

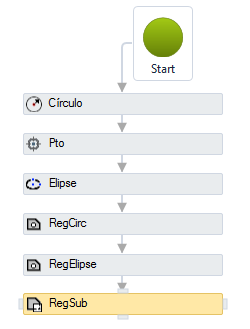

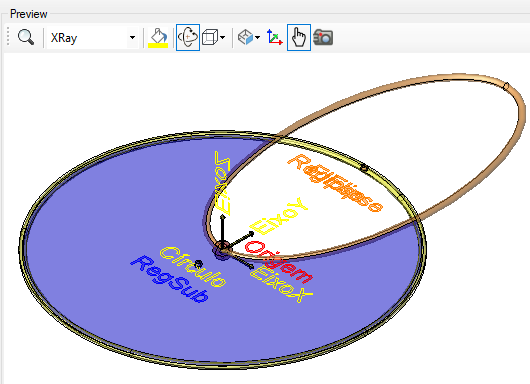

This activity is used to compose a complex region, for example, to draw a manhole and cut holes in the wall where the pipes connect:

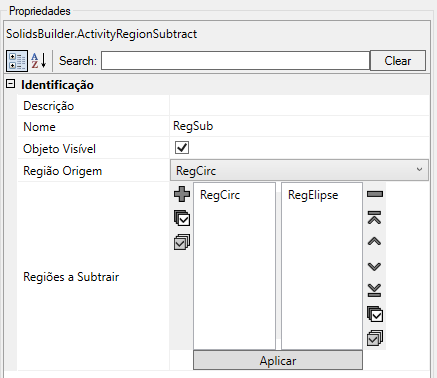

The Subtract Regions activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Object Visible - indicates whether the resulting solid will be drawn in the preview
  • Region of origin - name of region of origin, from which regions selected in the list will be subtracted
  • Regions to Subtract - indicates the list of regions to be subtracted from the source region. At least one region must be selected

The Subtract Regions activity requires a region list editor. This editor is the same as the activity Polyline:

The buttons have the following functions:

• Move to Top - moves the selected items to the top of the list
• Up - moves the selected items up by one position
• Down - moves the selected items down by one position
• Move to Bottom - moves the selected items to the bottom of the list
• Add - adds the items selected from the left list (available points) to the right list (used points)
• Remove - removes selected items from the list on the right (used points)
• Select All - selects all items
• Invert Selection - inverts the list selection
• Apply - applies the list selection to the activity.
  To have it drawn with the chosen items, click on this button

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of regions

Methods (for use in VB expressions)

implements the methods of regions
