Solids Builder - Intersection (4 points)

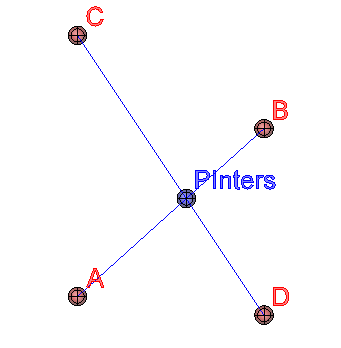

Intersection (4 points) - creates a point at the intersection of two lines passing through two pairs of coordinates:

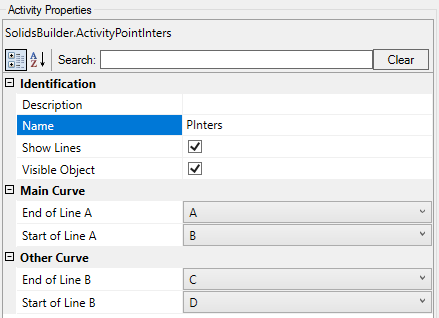

The Intersection (4 points) activity has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Object Visible - indicates whether or not the point should be drawn in the preview
  • Visible Lines - indicates whether the construction lines (in blue in the image above) are visible or not
• Main Line
  • Start of Line A - name of start point of line A
  • End of Line A - name of the end point of line A
• Secondary Line
  • Start of Line B - name of the point the start of line B
  • End of Line B - name of the end point of line B

Note that, if the lines are not in the same plane, the Z ordinate of the intersection point will be the average of the heights of the Z ordinate on lines A and B

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of the points

Methods (for use in VB expressions)

implements the methods of the points
