Excavation, Load and Transport

The DMT bands are used to classify the volumes transported in bands of which there is a constant transport price.

In the DDM program, you can set these ranges and their costs form:

Minimum DMT ≤ DTM < Maximum DMT

The program may use the cost values or the DMT value to evaluate the distribution. There is this possibility, since the costs of the bands are not necessarily a linear function of the DMT, nor even the length of the band is uniform. To do this, set the

If DMT bands are reported, after the distribution calculation, the you can see the sum of Volumes corresponding to each track.

Each track should have:

  1. Minimum DMT - Start of range
  2. Maximum DMT - End of range
  3. First Cat. Cost - Cost of transportation in first category
  4. Second Cat. Cost - Cost of transport in second category
  5. Third Cat. Cost - Cost of transportation in third category
  6. First Cat. Volume - first category geometric volume transported in the range
  7. Second Cat. Volume- second-order geometric volume transported in the range
  8. Third Cat. Volume - third-category geometric volume transported in the range

For example, SICRO has in its compositions several prices for each DMT band and category:

Code Description
  Excavation, load and transport of 1st category material - DMT of 50 m
5502109 Excavation, load and transport of 1st category material - DMT from 50 to 200 m
5502110 Excavation, load and transport of 1st category material - DMT from 200 to 400 m. ..
5502111 Excavation, load and transport of 1st category material - DMT from 400 to 600 m. ..
5502112 Excavation, load and transport of 1st category material - DMT from 600 to 800 m. ..
5502113 Excavation, load and transport of 1st category material - DMT from 800 to 1000 m. ..
5502114 Excavation, load and transport of 1st category material - DMT from 1,000 to 1,200 m. ..
5502115 Excavation, load and transport of 1st category material - DMT from 1,200 to 1,400 m. ..
5502116 Excavation, load and transport of 1st category material - DMT from 1,400 to 1,600 m. ..
5502117 Excavation, load and transport of 1st category material - DMT from 1,600 to 1,800 m. ..
5502118 Excavation, load and transport of 1st category material - DMT from 1,800 to 2,000 m. ..
5502119 Excavation, load and transport of 1st category material - DMT from 2,000 to 2,500 m. ..
5502120 Excavation, load and transport of 1st category material - DMT from 2,500 to 3,000 m. ..
5502834 Excavation, load and transport of 1st category material in the distance of 3,000 m. ..
Excavation, load and transport of 2nd category material - DMT of 50
5502585 Excavation, load and transport of 2nd category material - DMT from 50 to 200 m. ..
5502586 Excavation, load and transport of 2nd category material - DMT from 200 to 400 m. ..
5502587 Excavation, load and transport of 2nd category material - DMT from 400 to 600 m. ..
5502588 Excavation, load and transport of 2nd category material - DMT from 600 to 800 m. ..
5502589 Excavation, load and transport of 2nd category material - DMT from 800 to 1000 m. ..
5502590 Excavation, load and transport of 2nd category material - DMT from 1,000 to 1,200 m. ..
5502591 Excavation, load and transport of 2nd category material - DMT from 1,200 to 1,400 m. ..
5502592 Excavation, load and transport of 2nd category material - DMT from 1,400 to 1,600 m. ..
5502593 Excavation, load and transport of 2nd category material - DMT from 1,600 to 1,800 m. ..
5502594 Excavation, load and transport of 2nd category material - DMT from 1,800 to 2,000 m. ..
5502595 Excavation, load and transport of 2nd category material - DMT from 2,000 to 2,500 m. ..
5502596 Excavation, load and transport of 2nd category material - DMT from 2,500 to 3,000 m. ..
5502857 Excavation, load and transport of 2nd category material in the distance of 3,000 m. ..
Excavation, load and transport of 3rd category material - DMT of 50 m
5502742 Excavation, load and transport of 3rd category material - DMT from 50 to 200 m. ..
5502743 Excavation, load and transport of 3rd category material - DMT from 200 to 400 m. ..
5502744 Excavation, load and transport of 3rd category material - DMT from 400 to 600 m. ..
5502745 Excavation, load and transport of 3rd category material - DMT from 600 to 800 m. ..
5502746 Excavation, load and transport of 3rd category material - DMT from 800 to 1000 m. ..
5502747 Excavation, load and transport of 3rd category material - DMT from 1,000 to 1,200 m. ..
5502748 Excavation, load and transport of 3rd category material - DMT from 1,200 to 1,400 m. ..
5502749 Excavation, load and transport of 3rd category material - DMT from 1,400 to 1,600 m. ..
5502750 Excavation, load and transport of 3rd category material - DMT from 1,600 to 1,800 m. ..
5502751 Excavation, load and transport of 3rd category material - DMT from 1,800 to 2,000 m. ..
5502752 Excavation, load and transport of 3rd category material - DMT from 2,000 to 2,500 m. ..
5502753 Excavation, load and transport of 3rd category material - DMT from 2,500 to 3,000 m. ..
5502886 Excavation, load and transport of 3rd category material in the distance of 3,000 m. ..

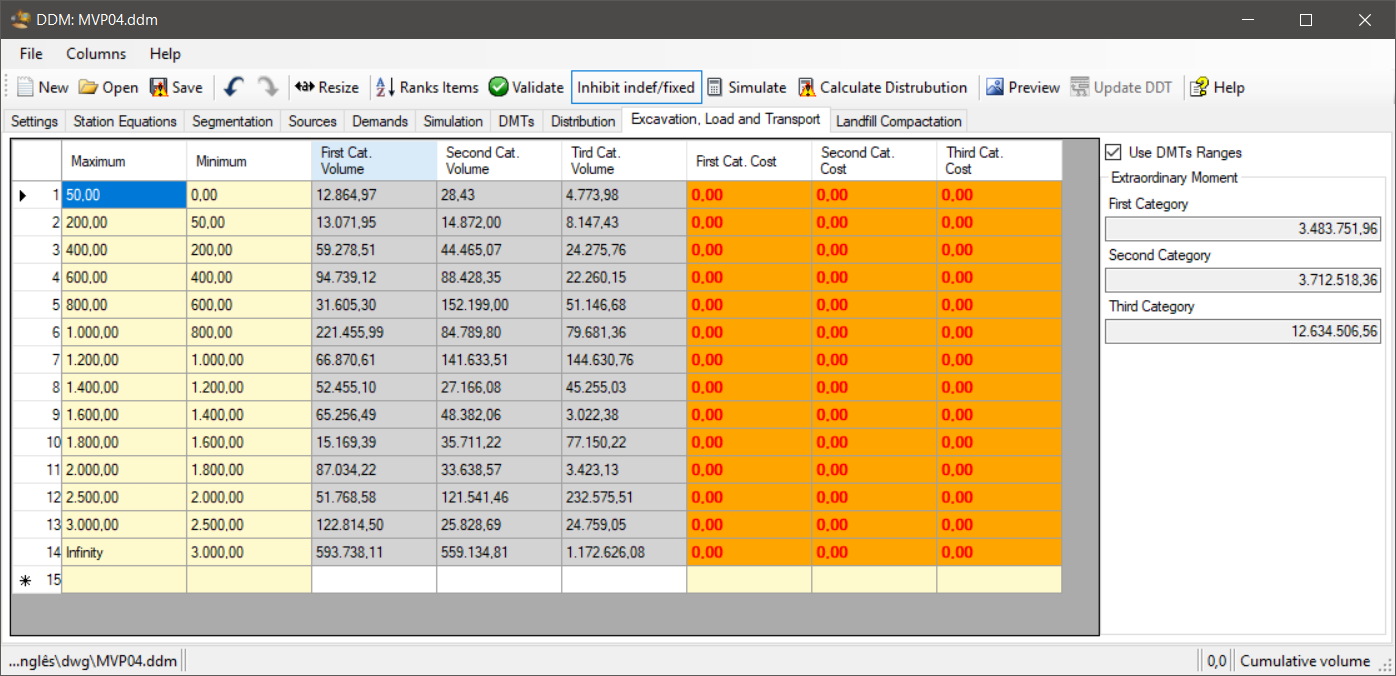

Note that the values ??of the geometric volumes by track and category, comes from the distribution tab.

Note also the right side of the screen. It shows the values ??of the total extraordinary moments by category, which also comes out of the distribution tab. In SICRO, it's the items:

Code Description Category
5915319 Transport with 14 m³ tipper truck - natural-bed highway 1 and 2
5914346 Transport with 14 m³ tipper truck - natural-bed highway 3

If any value is invalid, the text will be in red, indicating the error.

Cells with yellow background, are editable. Cells with white background, are read-only.
