Settings

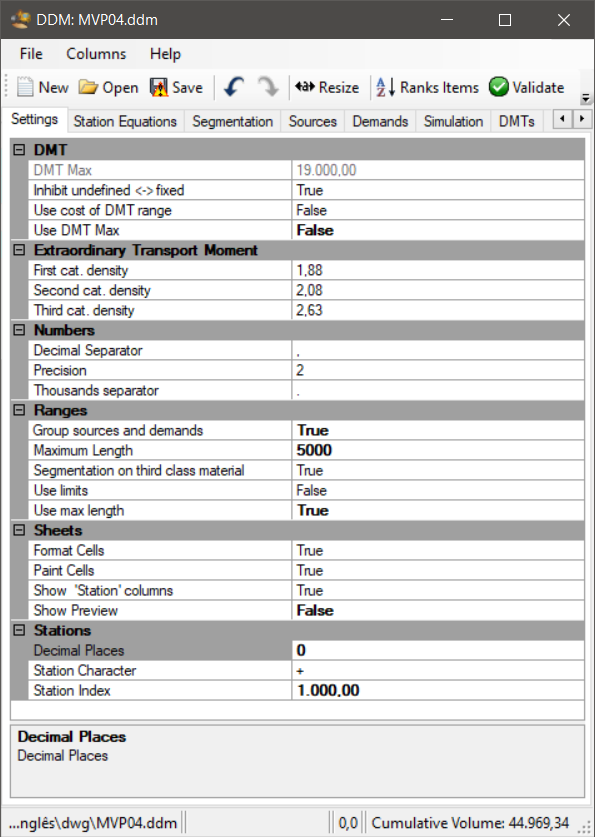

On this tab, you must configure the formatting of numbers and stations in the program's worksheets, as well as the parameters to be used to draw the preview and also to configure the DDT.

The settings are:

1. Blocks

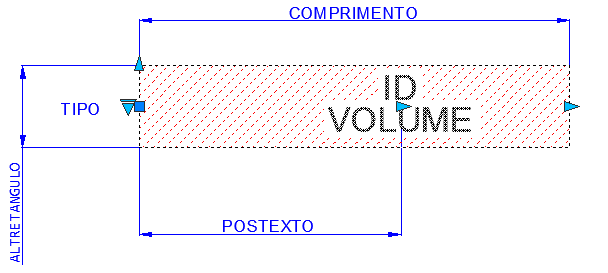

   • Rectangle - name of the block that draws the rectangle
     • Attributes:
       • ID - name of the source or demand
       • VOLUME - geometric volume at source
     • Dynamic Attributes:
       • ALTRETANGULO - controls the height of the rectangle
       • POSTEXTO - controls the position of ID and VOLUME attributes
       • TIPO - visibility state to change hatch
       • COMPRIMENTO - controls the length of the rectangle

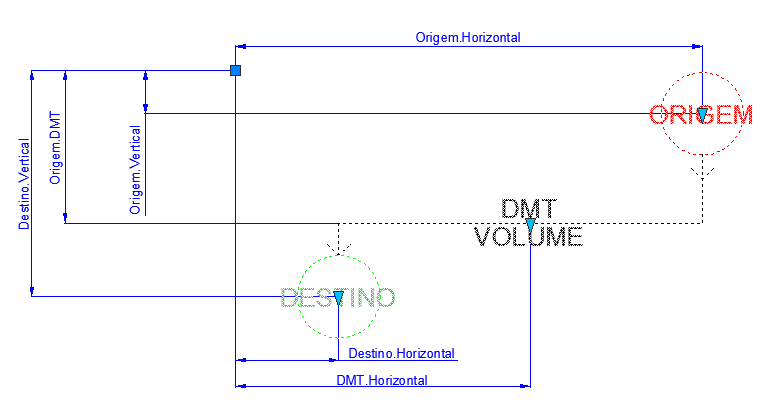

   • Block - name of the block that draws the balls of the moves
     • Attributes
       • ORIGEM - source name
       • DESTINO - name of the demand
       • VOLUME - geometric volume at the source and to be transported
       • DMT - average transport distance, including dead distance if available
     • Dynamic Attributes
       • Origem. Horizontal - relative horizontal position of the "bubble" source
       • Origem. Vertical - relative vertical position of the "bubble" source
       • Destino. Horizontal - relative horizontal position of the demand "bubble"
       • Destino. Vertical - relative vertical position of the "bubble" demand
       • DMT. Horizontal - relative horizontal position of the DMT and VOLUME attributes
       • DMT. Vertical - relative vertical position of the DMT and VOLUME attributes

   • Major Station Block
     • Attributes:
       • ESTACA - station value
   • Station Block
     • Attributes:
       • ESTACA - station value
2. Bubbles
   • Interval - Vertical spacing interval of the horizontal line of the bubble block
3. Axis and Stations
   • Major station interval
   • Minor station interval

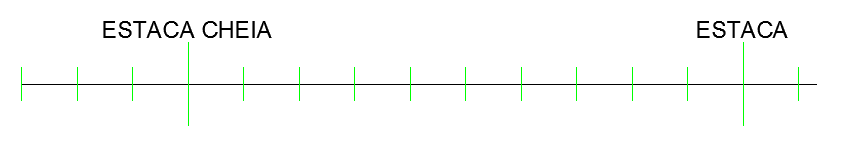

   The larger green line, is the Major Station block. The smaller green line is the minor station block. The horizontal line is the axis.
4. Stations
   • Character separator - Separator between integer and fractional part
   • Precision - Number of fractional part decimal places
   • Station length - Length of an entire station, is Civil 3D's Station Index
5. Numbers
   • Precision - Number of fractional part decimal places
   • Character separator - Separator between integer and fractional part
   • Decimal separator - Character of decimal separator
   • Thousands separator - Character thousands separator
6. Rectangle
   • Height - Height of rectangles that indicate sources and demands in preview
7. Texts
   • Text height
   • DMT Template
   • Volume Template
8. Preview
   • ZoomWhell - changes the zoom effect of the mouse wheel
9. DMT
   • Inhibit Indef <->fixed - Inhibits movements where the source or demand is undefined for demand or fixed source. Use this option to evaluate cases where they look for indications of where the deposits or borrow pit should be so that it was economized in the extraordinary moment. There are cases where it is cheaper to put a mandatory source in the Borrow Pit and to look for material in the deposit for a given landfill, because the DMT is much smaller, causing a minor moment extraordinary.
   • Use DMT cost - For the calculation of the distribution, if the costs of each DMT range and category, this cost can be used. Case otherwise, you should do the distribution using only DMT
   • Maximum DMT - Restricts movements where DMT is greater than maximum DMT
   • Maximum DMT - The maximum DMT value to be considered if the above option is true
10. Ranges
    • Use maximum length - When sorting sources and demands, they may have a very long length, which can mask DMT. You can then limit the maximum length using this parameter and the maximum length can be set below
    • Maximum Lengths - Maximum occurrence length. If an item has a very long extension, it can be subdivided to give more precision to the DMT calculation until the demand or demand
    • Group sources and demands - Enables or disables grouping of sources and demands. In general, if the cuts have the same names, regardless of their category, check this option.common groups are: Cut (includes 1,2 and 3 cat.), Recess (includes 1,2 and 3 cat.), Lateral loan (includes 1,2 and 3 cat.), Landfill, body of landfill in soil, body of rocky landfill), backfill (includes backfill in ground, in stone)
    • Use Limiters - Enables or disables the use of Limiters. Limiters are used to inhibit a movement by geometrical impossibilities, for example: there is a river that crosses the stretch and you can not cross it, making it impossible for materials of one stretch to be used elsewhere.
    • Allow third category Segmentation - Segmentation in principle applies only to first- or second-category materials. However, it may be useful to allow for third category under certain circumstances. For example, if the first-class landfill body should not receive third material, and if we could only observe the CBR and the Expansion, we can arbitrate a permeability to the third material as a device to inhibit this type of movement. Alternatively, use the limiters setting above.
11. Extraordinary Moment - Defines specific densities or weights of materials by category, they can be:
    • First Density - by default of SICRO, equal to 1.875 t / m³
    • Second density - by default of SICRO, equal to 2.085 t / m³
    • Third Density - by default of SICRO, equal to 2,630 t / m³
