Profile Preview


Shows a schematic profile of selected passages.
This profile can help you make decisions about imposing elevations in the pipes, since it can show the projection of all the pipes which arrive in a box.




You can also change the colors of this screen. See parameters frame.

Note: that the excerpts appear in a different color from the others and that the program can draw more than one section, which will be useful when checking inconsistencies in the elevation.

You can change the zoom:

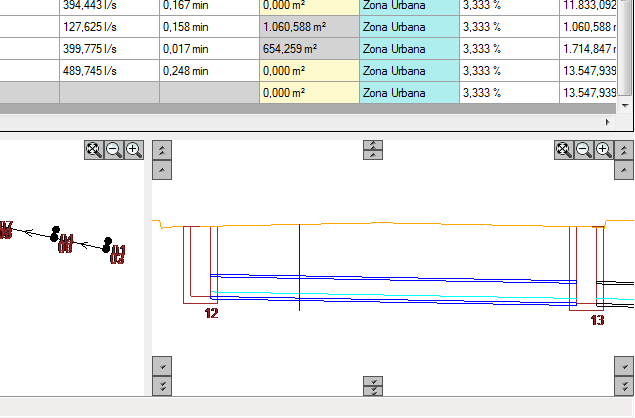

The buttons that are at the corners serve to exchange elevations upstream and downstream of the selected passages. The double arrow buttons increase or decrease with depth Increment Biggest, since the buttons with arrows simple with Smallest Increment, see figure:
