READKML

READKML reads KML files from Google Earth and draws it in AutoCAD. Use it in conjunction with the EXPGE

To use the command:

1. call the READKML command on the command line

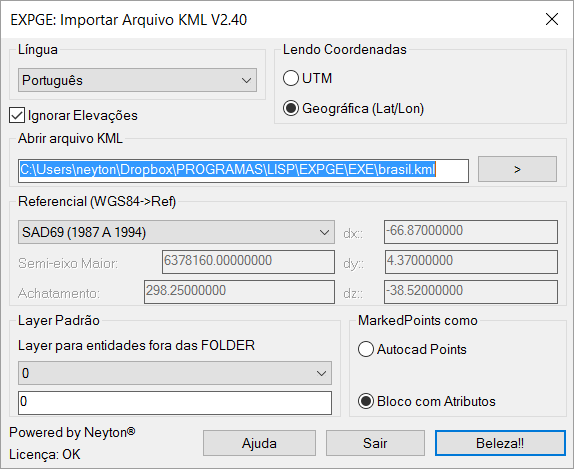

2. The following screen will be displayed:
   In it, you should choose some options, for example:
   • Coordinates - Your drawing must be in Universal Transverse Mercator (UTM) or Coordinate (latitude / longitude) coordinates with AutoCAD's World Coordinate System (WCS) coordinates
   • Open KML file - Enter the full path or click the search button. Note: Only files with KML extension are accepted. If you saved as KMZ, go back to Google Earth and save as KML
   • MarkedPoints As - In AuoCAD, MarkedPoints in Google Earth can be converted to blocks, or points. In the case of blocks, these can have attributes. If there are and these are POINT and DESCRIPTION These will be populated with values ??read from the marked point
   • Coordinate reference - Finally, you should choose which one is yours, for example SAD69, WGS84 ... This reference should be configured in the expge.ini file, with the parameters of radius Earth, ellipsoid flattening, and the coordinate transformation vector for the WGS84 system, which is used by Gollge Earth.
     For example:

     (; DO NOT ALTER THIS LINE !!!!

     ; Name HalfTimeMax Overturn dx dy dz
     ; ------------------------------------------------- ---------------------
     ("WGS84" 6378137.0 298.257223563 0.00 0.00 0.00)
     ; Resolution of the Presidency of the IBGE n ° 23 of 21/02/89
     ("SAD69 (1987-1994)" 6378160.0 298.25 -66.87 4.37 -38.52)
      ; Http://www.ibge.gov.br/home/geociencias/geodesia/default.shtm
     ("SAD69 (APOS 1994)" 6378160.0 298.25 -67.35 3.88 -38.22)
     ; Http://www.ibge.gov.br/home/geociencias/geodesia/default.shtm
     ("ED50" 6378388.0 297.00 84.87 96.49 116.95)
     ;
     ("Astro Chuá PY" 6378388.0 297.00 -134.0 229.00 -29.00)
     ; Http://www.u-blox.com/customersupport/docs/GPS.G1-X-00006.pdf

     ); DO NOT ALTER THIS LINE !!!!

   • Default Layer - In Google Earth, lines and periods can be gulped on folders. When importing to AutoCAD, the names of these folders will be used to define the Imported objects. If it is not possible to determine the layer for the lines, the default layer will be used.

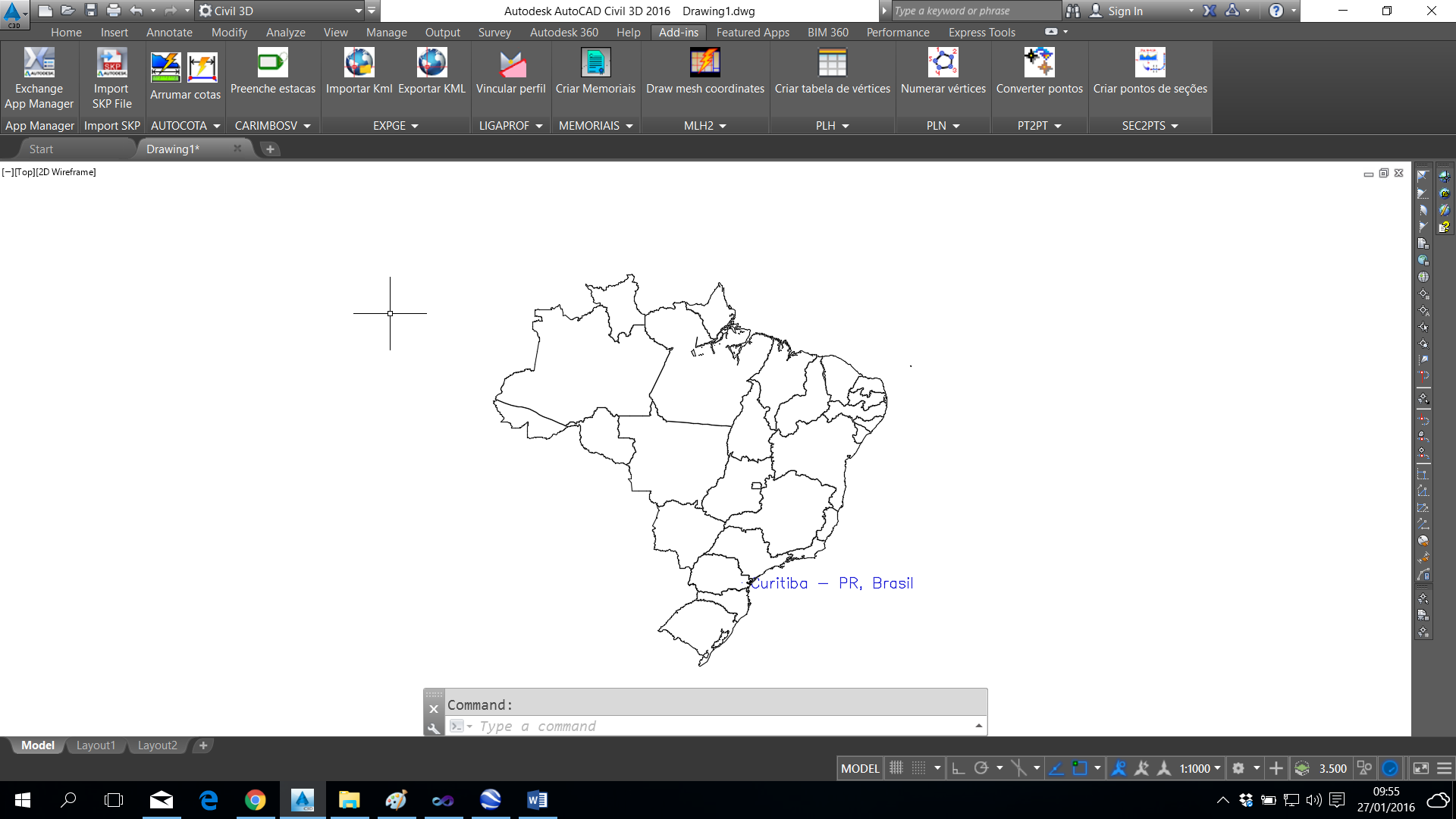

3. The result will be:
