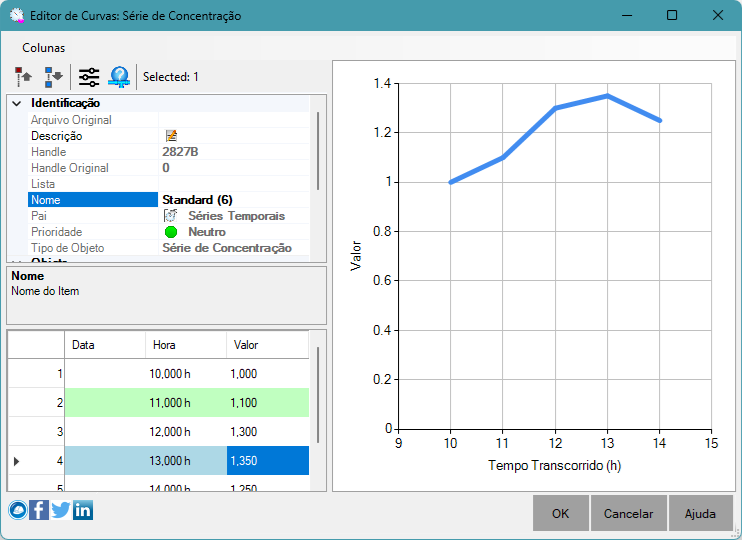

SWMM - Time Series - Concentration

A Concentration Time Series describes the time history of the direct external flow and the quality of water entering a drainage system node as a function of time

This series has the following properties:

• Identification
  • Description - Use a friendly description when the item name is not enough
  • Name - name of the item
    Avoid names that are too long, or that contain the following characters: '*', '>', '<', '/', '\', '"', ':', ';', '|', '=', '`', '#', ',', '?'
• Error Evaluation
  • Priority - Information about the current state of the item. Could it be:
    • Neutral: no problem
    • Critical: Some issue that prevents the item from being calculated or used
• SWMM
  • Start Date - Date when the simulation starts
  • Start Time - Time of day the simulation starts
• Data table - the time series data, with the columns:
  • Date - the date value for multi-day simulations
  • Time - the time value on the day specified in the date (if any)
  • Value - the value to use

See also: Time Series
