SWMM Shapes - Circular Filled

THE Circular Filled from SWMM, implements circular pipes with a flat bottom

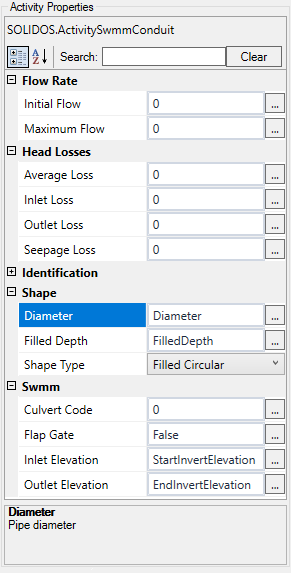

The geometry properties relevant to this section are the Diameter and the filled depth:

• Cross section
  • Diameter - Maximum height of the drain blade
  • Filled Depth - Height of the silted part of the section

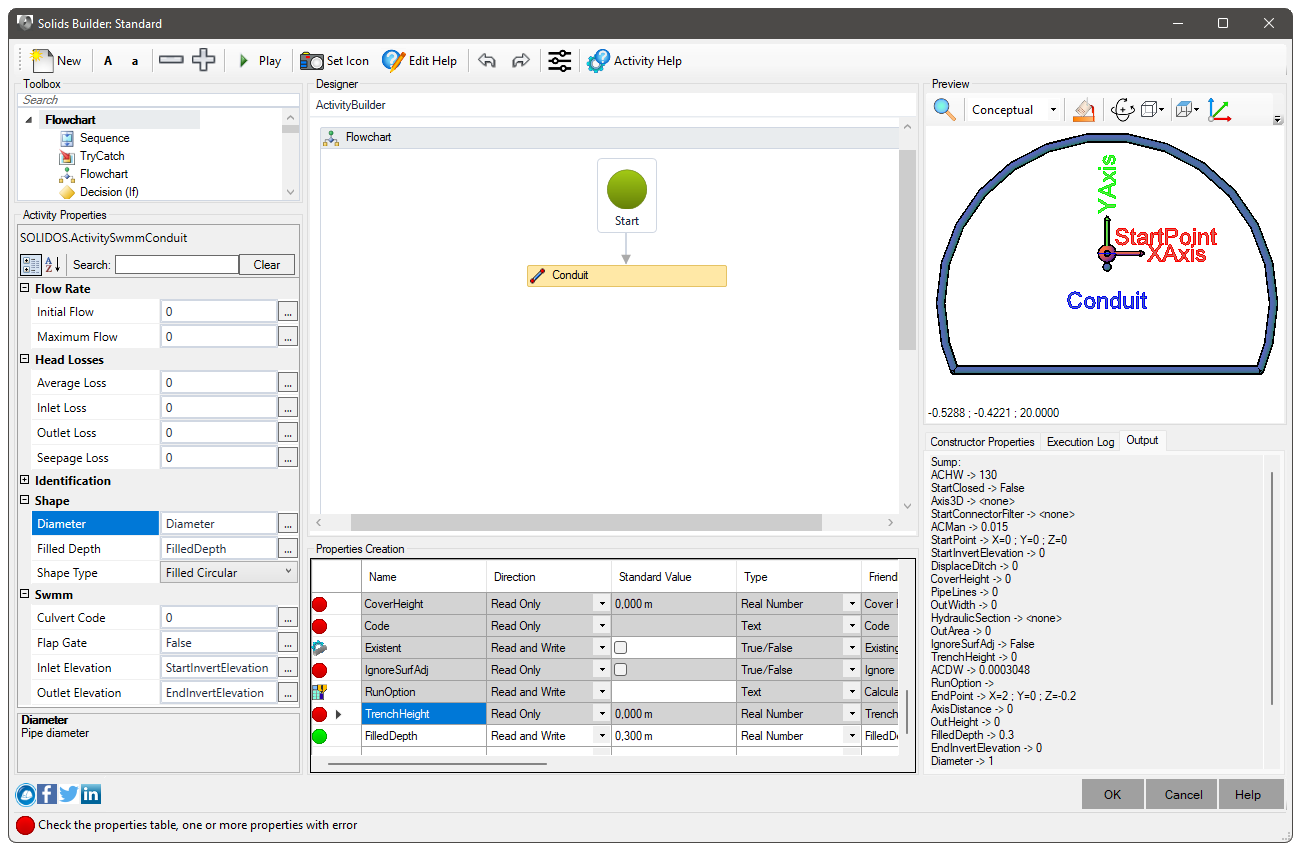

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:
