SLABELSTYLES

The command SLABELSTYLES creates and edits label styles applicable to devices, catchments, sectors or projections.

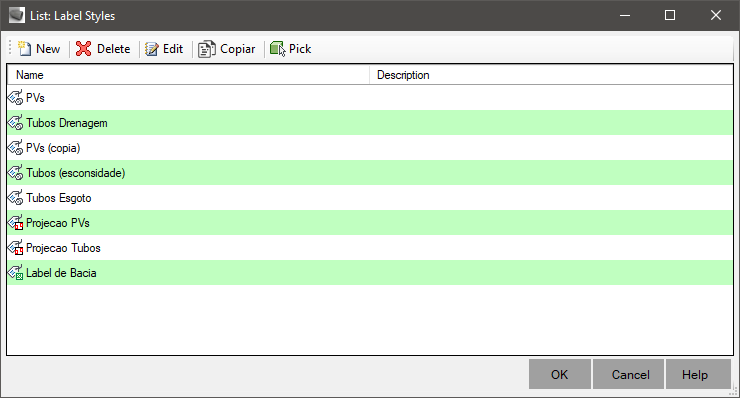

To use, call SLABELSTYLES from the command line, menu, toolbar, in the Ribbon choose the style you want to edit:

On this screen you can:

• New - Create a new label style

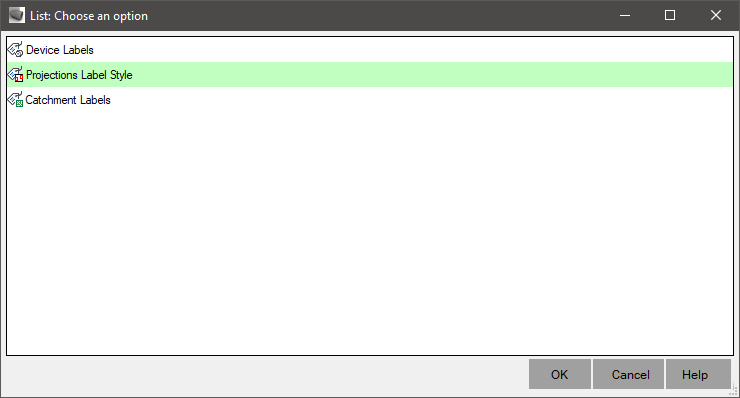

  When clicking to create a new label style, you will be asked to choose which type:



  Choose one of the types and click the OK button
• Delete - Delete selected styles if not in use
• Edit - Edit the selected style
• Copy - Copy and edit the selected rule
• Pick - select on the model space an item that has the style you want to edit

The label style allows you to add texts, lines or even blocks to compose the label (label). In the example below, a style for a device label, in this case a manhole:

On this screen, use the buttons at the top of the screen to add/delete components:

• Text - adds a text component
• Line - adds a line component
• Block - Adds a block component
• Delete - deletes the current component
• Sort Components - allows you to sort the components
  When adding a block component, it should generally be "underneath" the text component, use this option to change the order that components are created
  Note: if you hang one component on another and change the order, this may cause a circular reference. This occurs because a component should only be hung on another that has already been inserted
• Preview - show/hide the preview
• Leader Visibility - shows the label with/without leader

See the topic Settings / Label Styles to learn more
