Legal Creator Description

The command LegalDescriptionCreator makes it possible to generate a description of the entire subdivision to be saved to a text file in the format HTML that can be read in any text editor, for example, Micro$oft Word.

To use the command, invoke it and the screen below will open:

On this screen, on the toolbar, you can:

• New creates a new template file
• Open template file
• Edit Current template file
• Save template settings to a file
• Save As, saves the template to a different file

Click Edit button and bellow screen open:

If you have not read how to create the template, see the Macro Editor. For purposes of this example, click the Open button and locate the example in "TEMPLATES/sample text.ldc"

Finally, choose the Sites and parcels to be processed and click OK button.

Note: The OK button is available only if a template is defined and at least one parcel is selected.

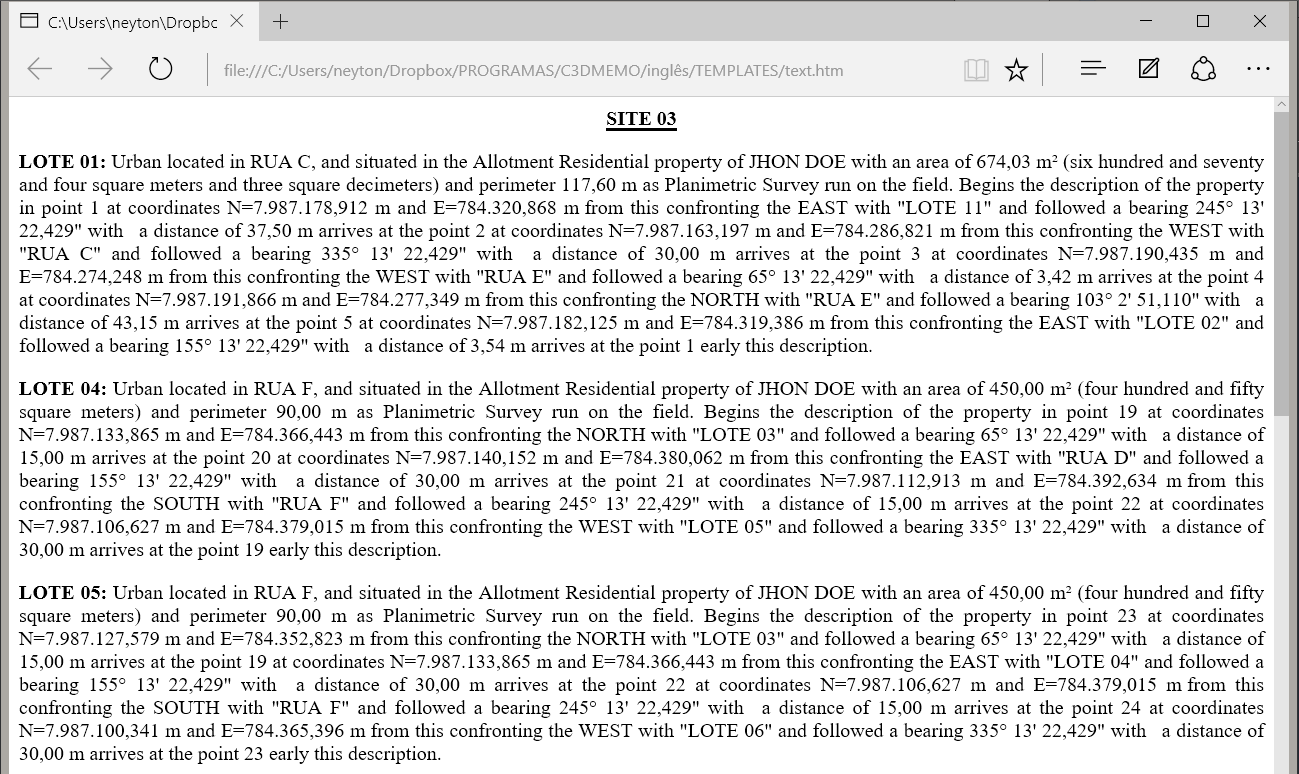

Here's a possible result:

After processing the data, are shown in the Error Collector parcels with any problem.
