Memories


The Memories command creates a memorial describing the selected polylines.
To use the command, call it on the command line.

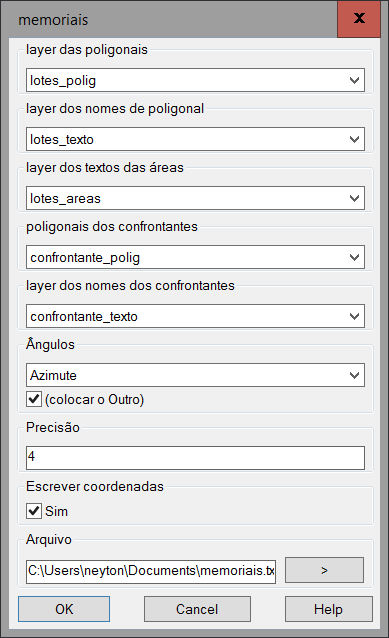

Will open a screen:



In it choose the layers of the elements to be read:
  1. Layer of the polylines to be made the memorial. Each polyline should be closed and the starting point should be the one you want to be the starting point
  2. Batch name layer - Each polyline must have a TEXT element with the batch name
  3. Layer of the batch area = each polyline must have a TEXT element with the area in square meters
  4. Layer of the contenders' polylines, each confronter must have a closed polyline, only to inform the program of the event and end of the confronter
  5. Conflict text layer, informs the name of the confronter in a text element
  6. Azimite / Rumo, you have to choose whether you want to display azimuth or bearing angles or both
  7. Include coordinates, informs if the X and Y coordinates of each vertex are part of the description
  8. Where to save the resulting text file

Each listed polyline may be confronting other pollinates, but in the case of streets, rivers or lands, the name of the opposing party should be enclosed By a polyline, just to make it easier to read the program.

Consider the example below (Download dwg):




After processing the result will be:
LOT 3 - 5,674.32 mē (five thousand, six hundred and seventy-four meters and thirty-two square decimeters) - The starting point 0 = PP starts at the north coordinates: 7,192,649,876m, East: 670,685 , 966m and, following the azimuth 10 ° 25 '15 "(79 ° 34' 45" NE) at a distance of 44.91 meters with LOT 2 we go to point 01; Deflecting to the right at the azimuth 35 ° 28 '30 "(54 ° 31' 30" NE) and following a boundary with LOT 1 at a distance of 61.44 meters we go to point 02; Deflecting to the right at the azimuth 125 ° 15 '06 "(35 ° 15' 06" NO) and following the direction of ALMEIDA at a distance of 71.85 meters we go to point 03; Deflecting to the right at the azimuth 210 ° 50 '30 "(59 ° 09' 30" S) and following the direction of LUIZA at a distance of 57.22 meters we go to point 04; Deflecting left at the azimuth 192 ° 18 '39 "(77 ° 41' 21" S) at a distance of 35.99 meters we go to point 05; Deflecting to the right at the azimuth 269 ° 20 '32 "(0 ° 39' 28" S) and following the direction of ADRIANA at a distance of 39.27 meters we go to point 06; Deflecting to the right at the azimuth 320 ° 43 '05 "(50 ° 43' 05" SE) at a distance of 41.34 meters we go to point 0 = PP, closing the perimeter and completing the description.
LOT 2 - 3,452.12 square meters (three thousand four hundred fifty-two meters and twelve square decimeters) - The starting point 0 = PP starts at the north coordinates: 7,192,744,531m, East: 670,630,904m And, following in the azimuth 128 ° 37 '25 "(38 ° 37' 25" NO) at a distance of 80.88 meters with LOT 1 we go to point 01; Deflecting to the right at the azimuth 190 ° 25 '15 "(79 ° 34' 45" S) and following a boundary with LOT 3 at a distance of 44.91 meters we go to point 02; Deflecting to the right at the azimuth 236 ° 13 '23 "(33 ° 46' 37" S) and following a boundary with ADRIANA at a distance of 59.18 meters we go to point 03; Deflecting to the right at the azimuth 352 ° 59 '57 "(82 ° 59' 57" SE) and following the direction of DUARTE at a distance of 48.14 meters we go to point 04; Deflecting to the left at the azimuth 283 ° 26 '54 "(13 ° 26' 54" SE) at a distance of 32.95 meters we go to point 05; Deflecting to the right at the azimuth 33 ° 04 '55 "(56 ° 55' 05" NE) and following NEYTON a distance of 44.65 meters we go to point 06; Deflecting to the left at the azimuth 12 ° 27 '56 "(77 ° 32' 04" NE) at a distance of 35.55 meters we go to point 0 = PP, closing the perimeter and completing the description.
LOT 1 - 10,342.65 mē (ten thousand, three hundred and forty two meters and sixty five square decimeters) - The starting point 0 = PP starts at the north coordinates: 7,192,744,531m, East: 670,630 , 904m and, following the azimuth 46 ° 22 '10 "(43 ° 37'50" NE) at a distance of 54.87 meters with NEYTON we go to point 01; Deflecting to the right at the azimuth 122 ° 56 '38 "(32 ° 56' 38" NO) and following the direction of ALMEIDA at a distance of 70.45 meters we go to point 02; Deflecting to the right at the azimuth 215 ° 28 '30 "(54 ° 31' 30" S) and following the boundary with LOT 3 at a distance of 61.44 meters we go to point 03; Deflecting to the right at the azimuth 308 ° 37 '25 "(38 ° 37' 25" SE) and following a boundary with LOT 2 at a distance of 80.88 meters we go to point 0 = PP, closing the perimeter and completing the description.

This program is very simple and any suggestion for improvement will be very welcome !!
