MLH2

The command MLH2 is an evolution of mlh2, available on my page.

It draws the coordinate mesh

To use, call MLH2 on the command line and follow the steps:

1. First choose whether you want to draw the coordinate grid just once, or multiple times
2. If you choose to draw multiple times, you will be asked to select the joint polylines.
   Tip: select the even polylines, process and then select the odd ones and place them on different layers, so you can freeze the layers per viewport
3. If you choose only one processing, select the polyline or viewport, or click ENTER to click 2 points in the Model Space

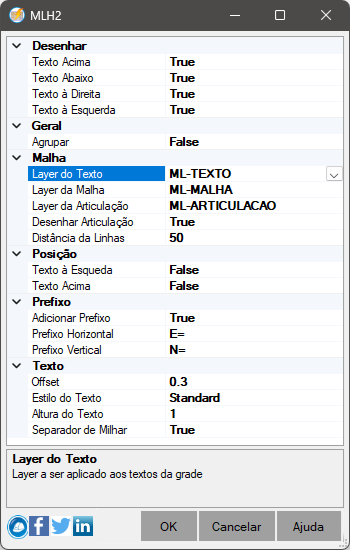

4. A screen with options will be shown. The parameters are self-explanatory:


5. Click OK to process

You can click the Save option to use these same parameters on another occasion.

Note: a usage license is requested. If you don't have one, you can only use this command 3 times in the same drawing.
