Civil 3D Settings

Algumas configurações do AutoCAD tem efeito sobre os valores lidos pelo NOTASERV, alguns deles estão listados abaixo:

1. Properties that returns angle:
   • Alignments / Entities / Start / Direction
   • Alignments / Entities / Final / Direction
   • Alignments / Entities / Sub Entities / Start / Direction
   • Alignments / Entities / Sub Entities / Final / Direction
   • Alignments / Entities / Sub Entities / Line / Direction
   • Alignments / Entities / Sub Entities / Arc / Chord Direction
   • Alignments / Entities / Sub Entities / Arc / Start Direction
   • Alignments / Entities / Sub Entities / Arc / Direction final
   • Alignments / Entities / Sub Entities / Arc / CPI / Delta
   • Alignments / Entities / Sub Entities / Arc / CPI / Deflected Angle
   • Alignments / Entities / Sub Entities / Espiral / Start Direction
   • Alignments / Entities / Sub Entities / Espiral / End Direction
   • Alignments / Entities / Sub Entities / Espiral / Spiral Angle
   • Alignments / Entities / Sub Entities / Arc / CPI / Delta
   • Idem para Alignments / PIs /. ...

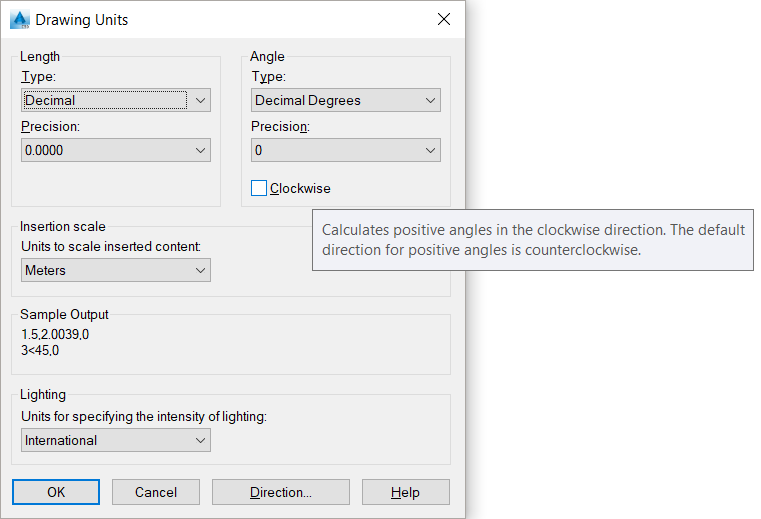

   Depends of AutoCAD UNITS, more precisely the variables ANGDIR and ANGBASE:
2. PIs of alignments: Alignments / PIs / Depends on you set Point of Intersection in alignment properties:

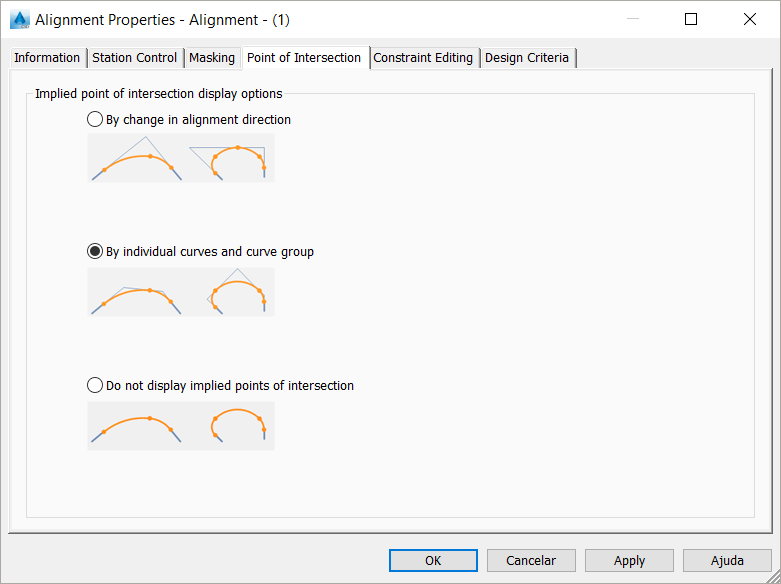

   The NOTASERV2 only consider as PI what can be identified by this screen.
