PT2PT2



The command PT2PT2 converts points between Civil 3D, 'Posição' (AutoCAD points) and 'Topograph' (blocks with attributes).

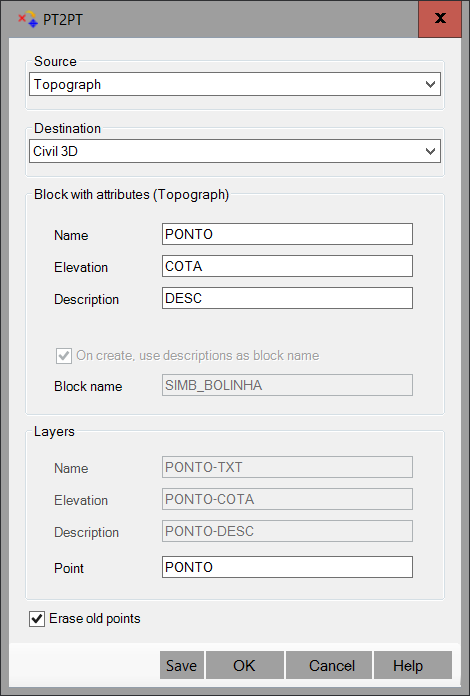

To use, call PT2PT on the command line, the screen will be shown:



Note that the picture regarding the 'Topograph' only enable when the destination or origin is the 'Topograph'. After conversion, you can manipulate the point in its proper program.

When creating 'Topograph' points, which will be atributados blocks if the block does not exist, one will be created which may have the name match with the description, or a single default name block.

You can also choose whether to delete old or no points.

New options soon, suggestions please !!!
