MSAMPLELINE

The command MSAMPLELINE has been developed to facilitate the creation of SampleLineGroups of several alignments at once.

Often we have a subdivision with N alignments that we need to design corridors and the task of creating these SampleLines can become quite time consuming if we have many alignments. I myself have done for over 30. ..

So come on, have their various alignments and surfaces, call the MSAMPLELINE

You will be asked to select the alignments, then opens this screen:

Here you can set the initial station, end station, width, increment, styles layers and template name.

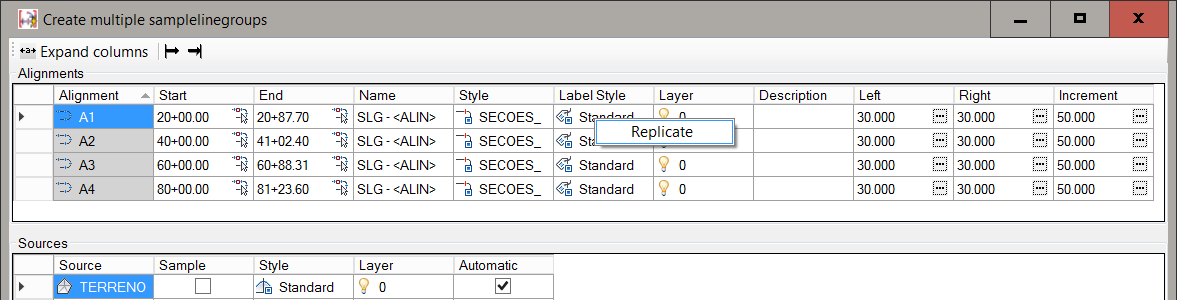

Some columns may repeat the same value on all lines. Click the right mouse button on a cell and click Replicate:

Finally, click the OK

• MPERFIL - to create various surface profiles
• MPROFVIEW - to create multiple profileviews
• MCORREDOR - to create multiple corridors
• MCORRSURF - to create multiple corridor surfaces
