MoveCogoLabel



The command MoveCogoLabel move the label of cogo points that are the vertices of a selected polyline

It will be useful when this label ends up being "heaped" on the polyline, making viewing difficult.

To use, call the MoveCogoLabel command select the polyline and informs a distance to remove the label of the point position.

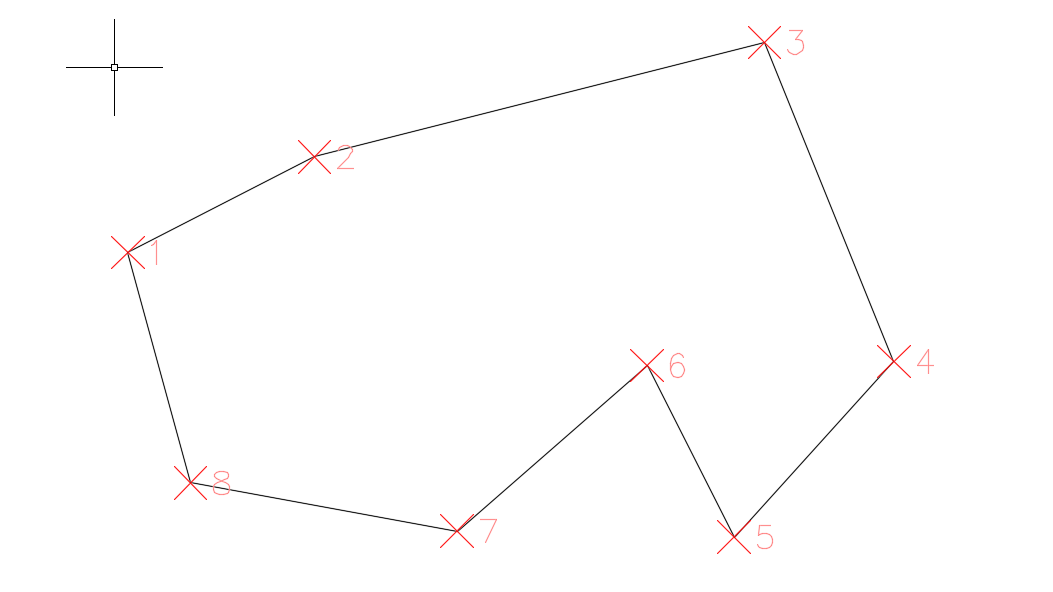

For example, consider a polyline and any call CREATEPTPLYLNCTRVERTAUTO command, which automatically creates points in the polyline vertices:

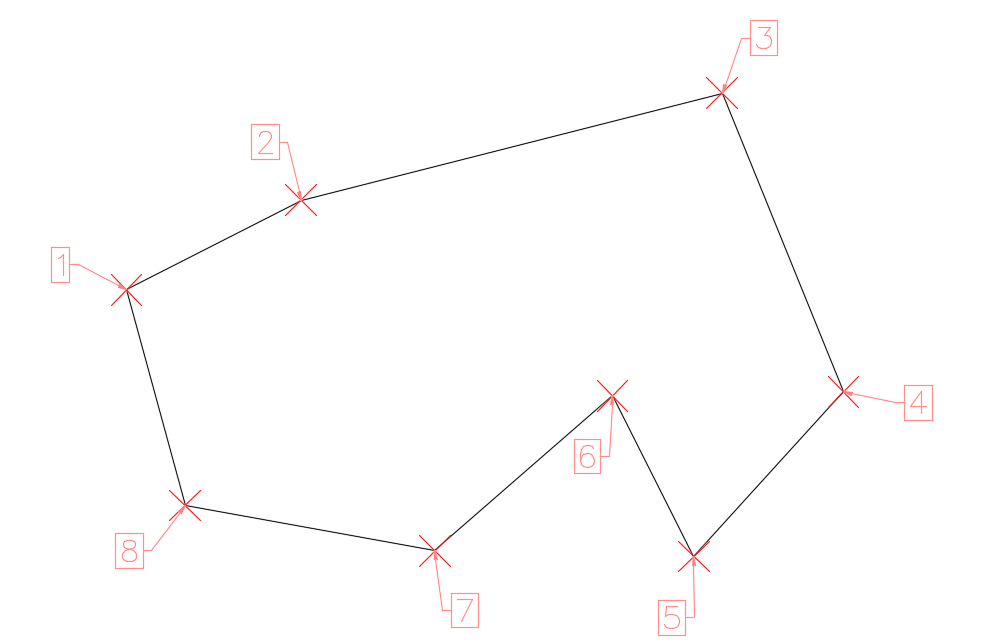

Now, call the MoveCogoLables command and take a look:
