SWMM - Time Series - Outlet

A Outfall Time Series describes the time history of the stage (water level) of an outfall, when it is defined as "Time Series"

This series has the following properties:

• Identification
  • Description (Description, String) - Use a friendly description when the item name is not enough
  • Name (Name, String) - name of the item
    Avoid names that are too long, or that contain the following characters: '*', '>', '<', '/', '\', '"', ':', ';', '|', '=', '`', '#', ',', '?'
• Object
  • Priority (Priority, Enum) - Information about the current state of the item. Could it be:
    • Neutral: no problem
    • Critical: Some issue that prevents the item from being calculated or used
  • Error Evaluation (CurveError, CurveError) - Result of data evaluation
  • Curve Data (CurveData, IListClonavel) - the time series data, with the columns:
    • Date (Date, Double) - the date value for multi-day simulations
    • Time (Time, Double) - the time value on the day specified in the date (if any)
    • Value (Value, Double) - the value to use
• SWMM
  • Start Date (StartDate, Double) - Date when the simulation starts
  • Start Time (StartTime, Double) - Time of day the simulation starts
  • End Date (EndDate, Double) - Date when the simulation ends
  • End Time (EndTime, Double) - Time of day when the simulation ends

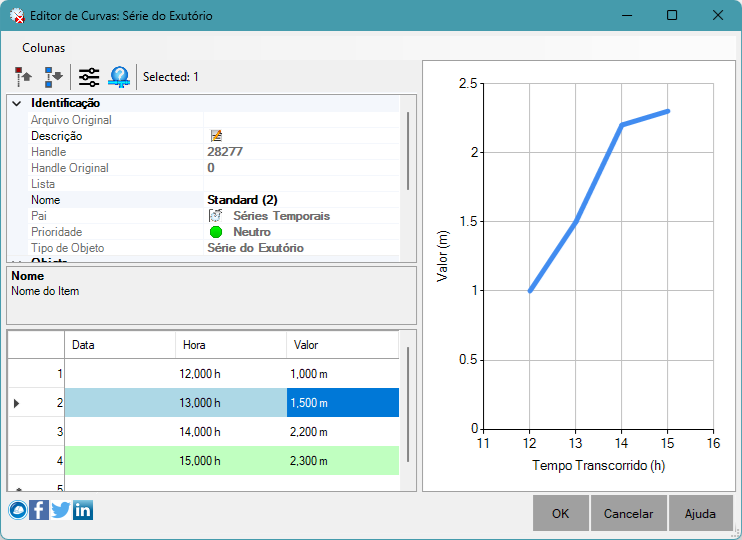

The data are entered into the table and plotted on the graph for better visualization:

See also: Time Series
