SPREVIEW

The command SPREVIEW Shows a preview of selected devices

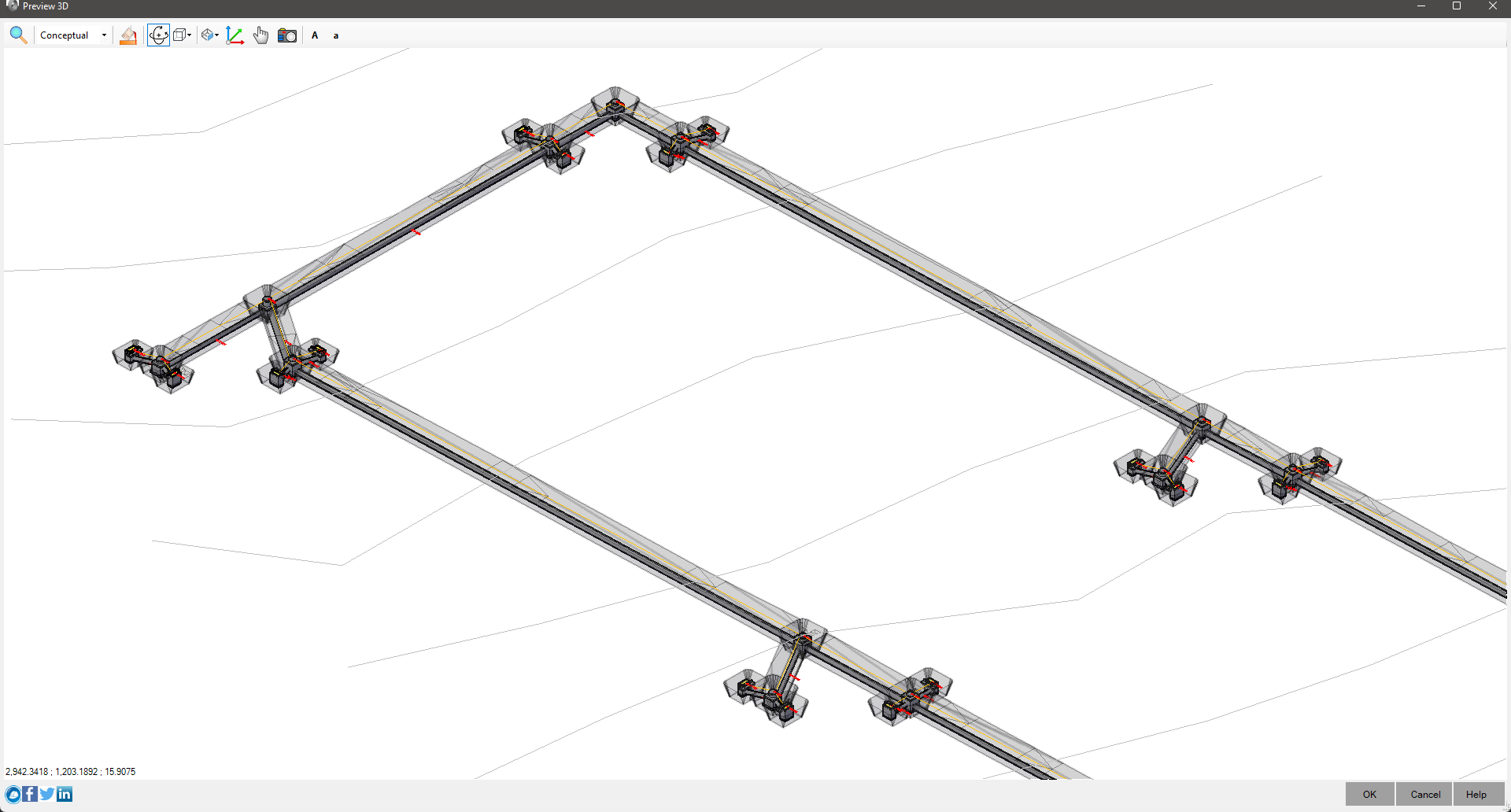

To use, call SPREVIEW from the command line, menu, toolbar or Ribbon. The preview will be shown:

This preview is very similar to AutoCAD's Object Viewer, however it foresees some situations:

• As the objective is to show 3D, the program does not show the plan view of the devices
• For devices that have the excavation trench calculated, it will be shown
• The pipe cover line is shown if the reference surface is defined

Tip: set the Civil 3D surface style to transparency, this will make the network easier to see
