Point List Editor

The Point List editor allows you to edit a list of points, with functions for reordering, adding, and deleting points. Appears in:

• Longitudinal Device Model Editor
• Typical Sections of Longitudinal Devices
• Longitudinal devices with manual points

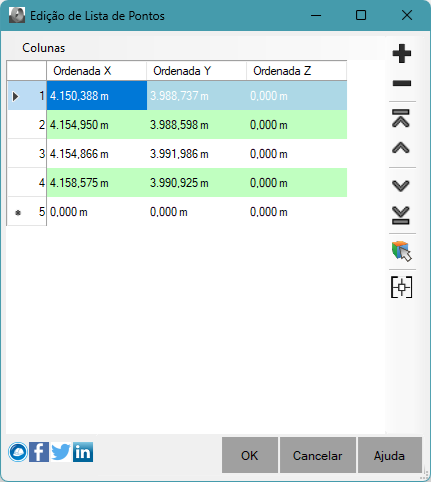

On the editing screen:

We have the following buttons:

• Add - adds a point after the selected line
• Remove - removes the selected points
• Start - moves the selected points to the beginning of the table
• Up - moves the selected points up one position
• Down - moves the selected points down one position
• Final - moves the selected points to the end of the table
• Select Object - prompts you to select an object with a list of points
• Click on Model - prompts you for a coordinate via the command line, allowing you to click in modelspace
