Slope Patterns Category (SlopePattern)

The Slope Patterns category controls the default properties for drawing the slopes of excavated trenches

• Draw Slope Pattern (AddSlopePattern, Boolean) - indicates whether the slope pattern will be drawn
• Height Limit (SlopePatternLimitHeight, Boolean) - indicates the limit to which the slope pattern is drawn from the crest to the foot of the slope
  Consider the following: Trapezoidal concrete trenches may have elevations lower than the terrain. In this case, the slope pattern can be interrupted at the edge of the device, since its base is buried.

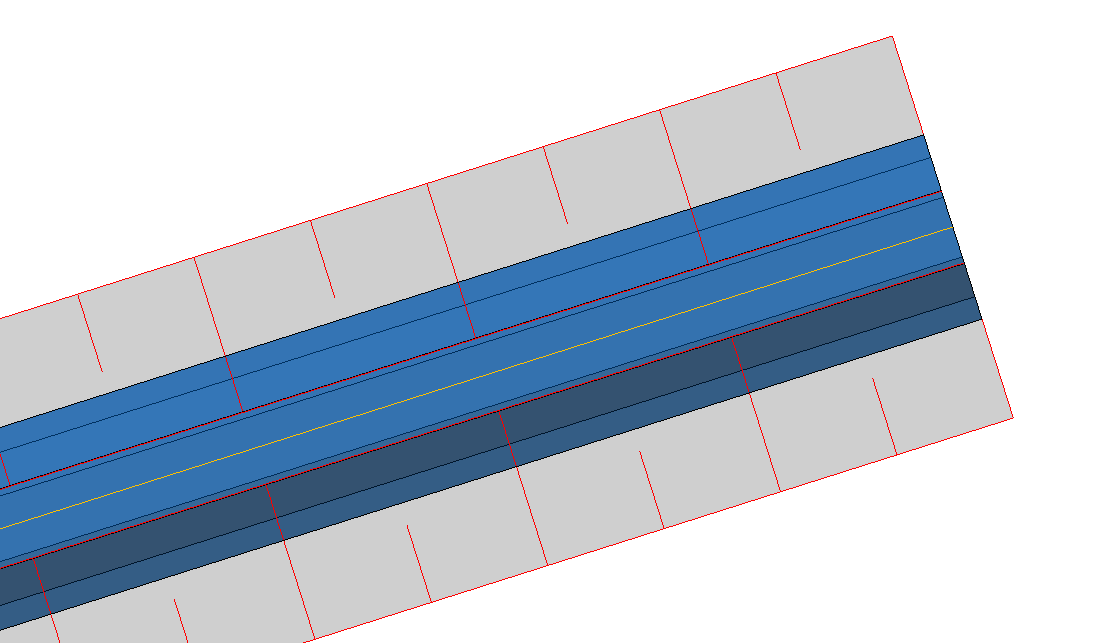

  If limit is zero:

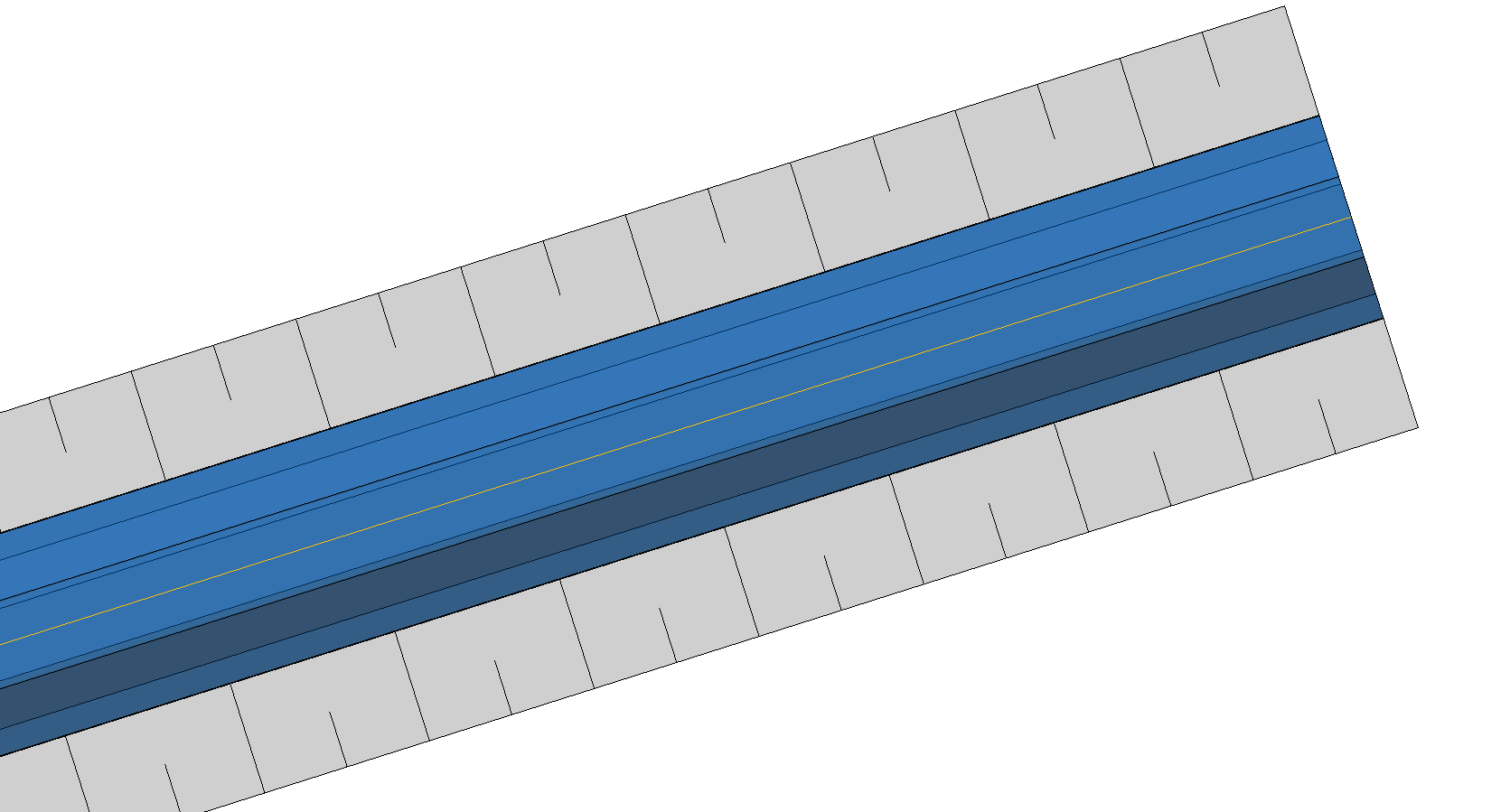

  If limit is greater than zero (in the example, equal to the external height of the device):



  Note how the slope is interrupted at the edge of the device
• Standard Spacing (SlopePatternIncr, Double) - longitudinal spacing of the slope pattern lines in relation to the length in plan
