EPANET - Curves

EPANET curves are objects that contain pairs of data that represent a relationship between two variables:

In general, curves have the following properties:

• Identification
  • Description - Use a friendly description when the item name is not enough
  • Name - Name of the item
    avoid very long names
  • Priority - Information about the current state of the item. It might be:
    • Neutral: no problem
    • Critical: Some issue that prevents the item from being calculated or used

EPANET uses the following curve types:

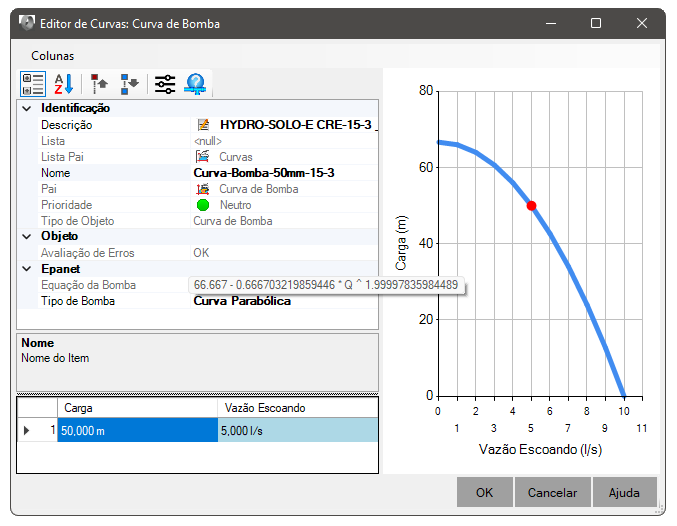

• Pump Curve - A pump curve represents the relationship between the load and flow rate that a pump can deliver at its rated speed setting
• Efficiency Curve - An efficiency curve determines pump efficiency as a function of pump flow rate
• Head Loss Curve - A Head Loss curve is used to describe the Head Loss through a general purpose valve (GPV) as a function of flow rate
• Volume Curve - A volume curve determines how the volume of the storage tank changes as a function of water level

Note: To create/edit a curve, use the command EPANETCURVES
