Solids Builder - Message

Message - Writes a message on the AutoCAD command line.

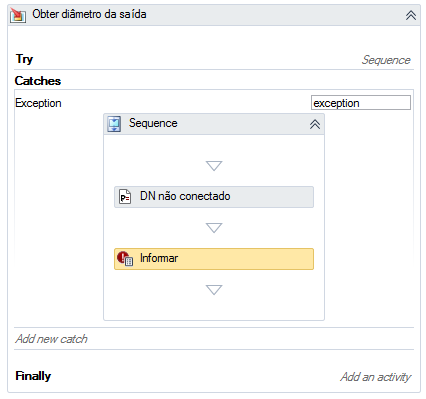

The purpose of this activity is to provide some feedback to the user while modeling the device. For example, reporting that something went wrong, or reporting the result of an expression:

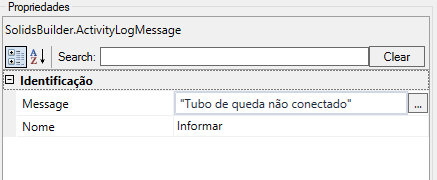

The Message activity has the following properties:

• Identification
  • Name - activity name
  • Message - the text to be written on the command line
    Note that this field is a VB expression, so you can compose more elaborate messages

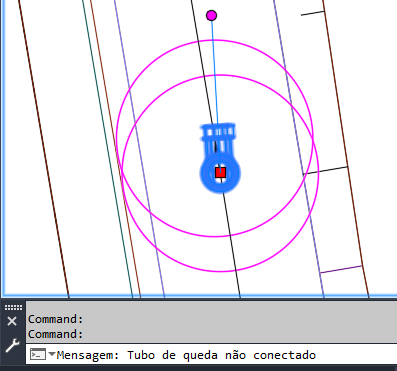

When modifying some device property, it shows the example message in the command line:
