EditSarjStyles


The command EditSarjStyles edit the styles of gutters.

These styles are saved in the definitions of the alignments styles of the Civil 3D, in the extended data.
The C3DRENESG uses 6 basic blocks:
  1. Arrow - Block que will show the direction of flow of water into the gutter
  2. Lowlight - will be inserted in the gutter lows.
  3. High Point - will be inserted in the high points of the gutter.
  4. Outputs - will be inserted in the position que you add outlets in the gutters with the command SarjSddNo
  5. Inputs - will be inserted in the position que you add entries in the gutters with the command SarjSddNo
  6. Errors - will be inserted in the position where errors occur

These blocks are defined in the gutter using the command EditSarjStyles.

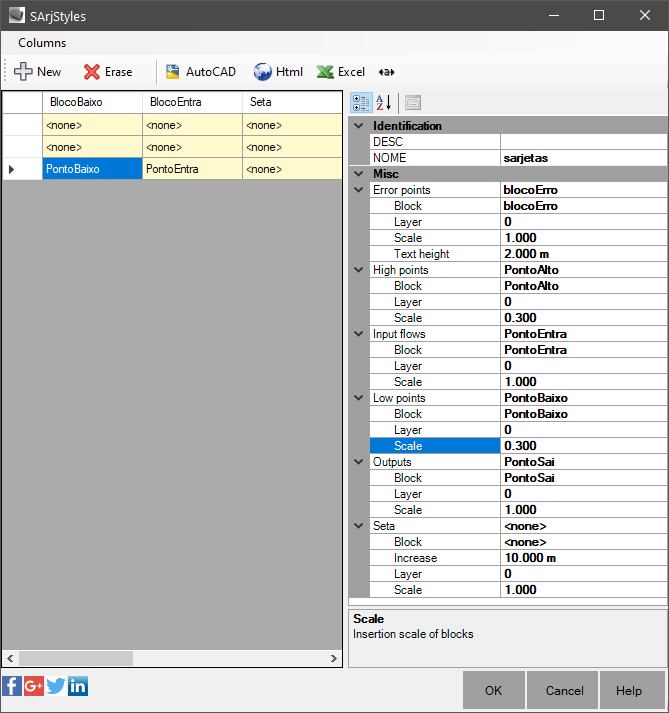

See:


Note: que for blocks of arrows is possible to define a distance between repetitions of blocks.

And for all blocks is possible to determine the range of integration thereof and the layer.

Note: The blocks need to be created by the user. The C3DRENESG does not create the blocks defined in the screen above.

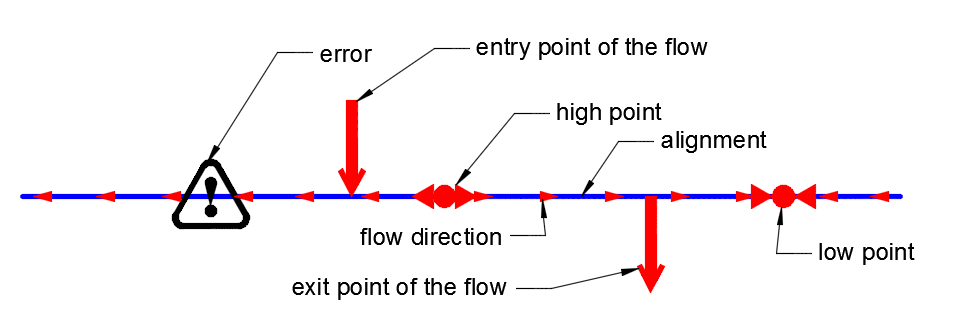

When blocks are created, the plant will result in:

See how create gutters in various alignments.
