CreateAlignFromNetwork


This is Civil 3D native command. It asks for the selection of pipes and structures and then draws a line that passes through them.

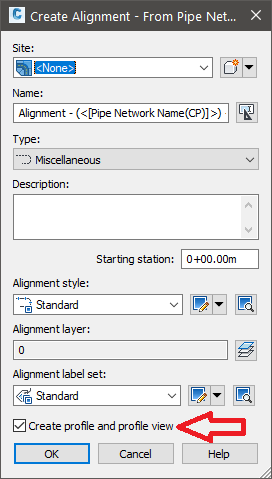

After selecting the two structures, fly you can still choose to create the profile view, which will show the network. To do so, check the box shown in the figure:


Tip: Select only the structure further upstream and structure further downstream, so the program selects alone all pipes and structures necessary to connect these two!!
