Cajusta

The command Cajusta adjusts the insertion point of the beginning and end of the tube.

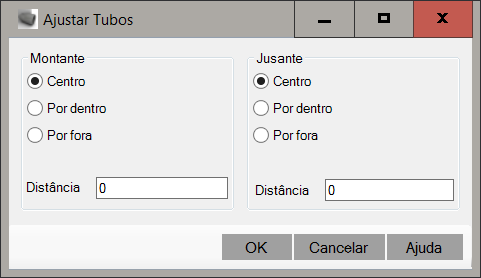

Works like the civil 3d rule "Adjust Pipe End Location", but you can do that in all tubes at once. When calling the command, the following screen opens:

There, you can choose between the options:

• Amount - Start of the pipe
  • Center - Civil 3D default setting when launching the network
  • Inside, align the face of the tube with the inner face of the structure wall
  • Outside, align the face of the tube with the outer face of the structure wall
  • Distance - Adds an offset between the beginning or end of the pipe and the chosen option
• Downstream - End of the pipe
  • Center - Civil 3D default setting when launching the network
  • Inside, align the face of the tube with the inner face of the structure wall
  • Outside, align the face of the tube with the outer face of the structure wall
  • Distance - Adds an offset between the beginning or end of the pipe and the chosen option

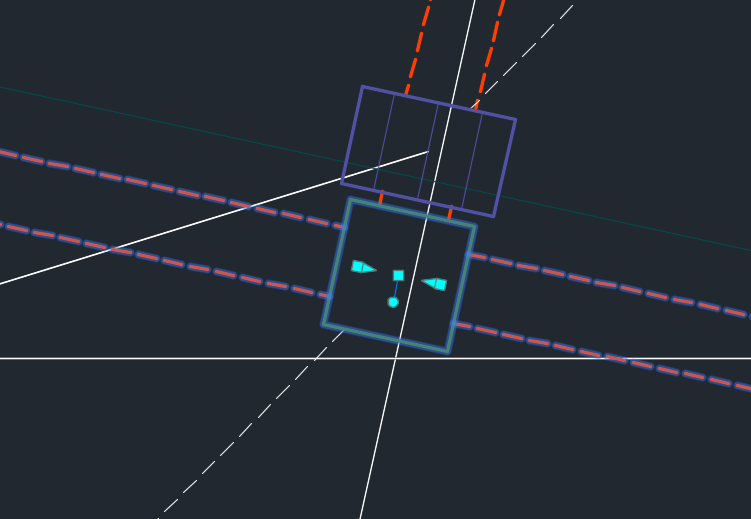

After editing, you will see something like this:

Note that the tube blips are no longer in the center of the structure, this gives more accurate results in the lengths of the pipes.
