Define Orientations

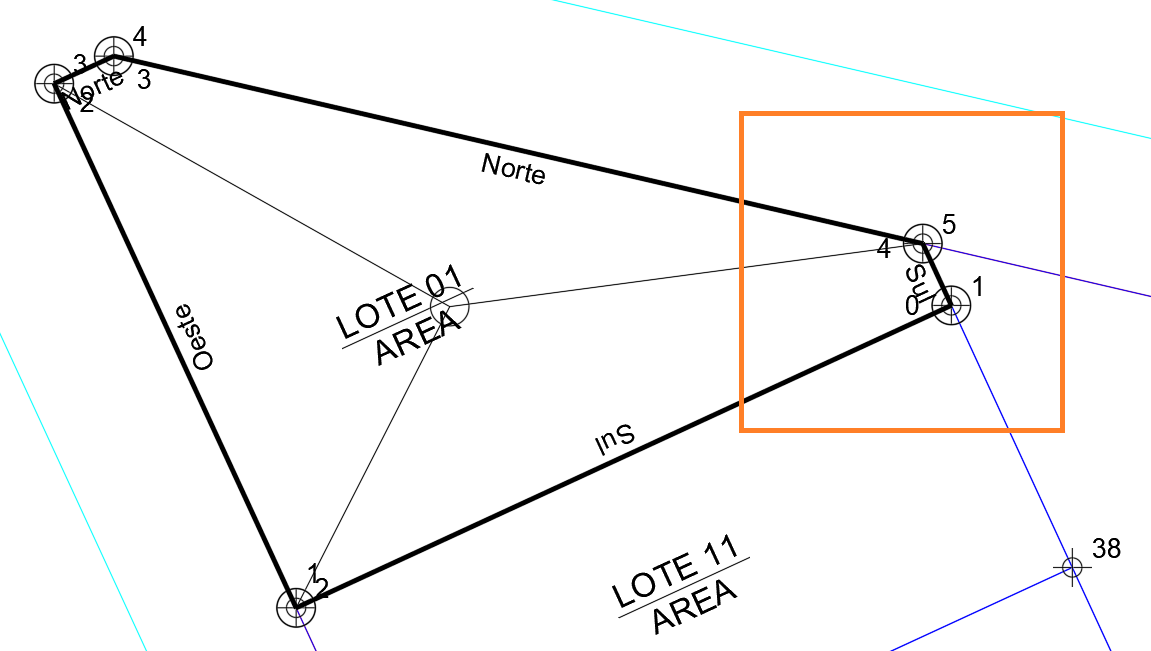

The DefOrientacoes command allows you to manually set polygon orientations. It will be useful in some cases where the algorithm which calculates the orientations show inconsistent results as shown below:

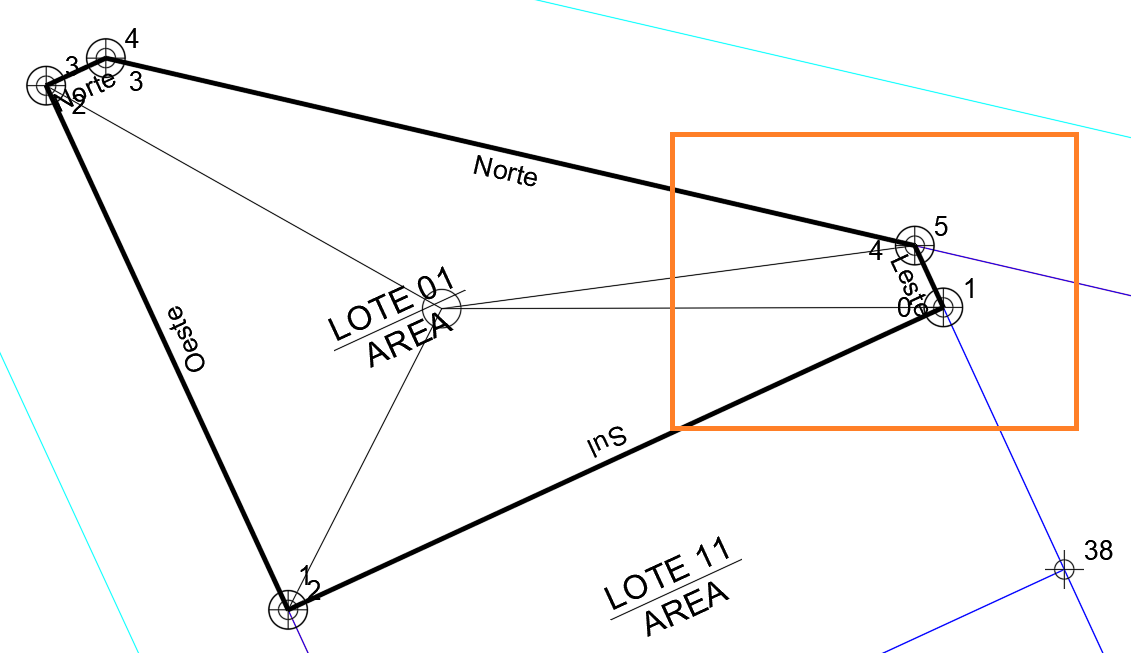

Note that the program calculated South using the boundary with lot 11 plus the segment between vertices 4 and 0.   If you think the South should be considered only on Lot 11, then use this command to modify.

To use the command, call it from the command line, select a parcel and and click the start and end point for the orientations.

Note: The drawing is temporary. So just make a REGEN to clear the drawing.
